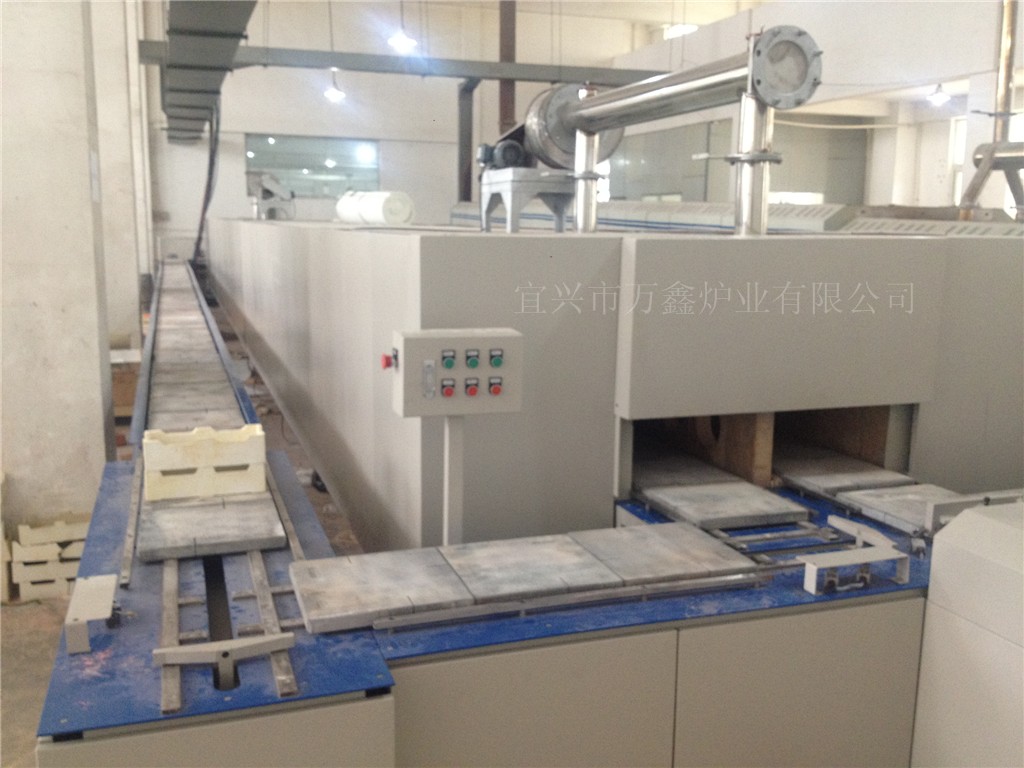

TZL automatic series double hole double push plate tunnel resistance furnace
用途：PTC粉料、稀土、陶瓷制品、熱敏陶瓷元件、磁性材料、氧化鋁、電子陶瓷等的煅燒。
特點：雙孔雙回轉比2條單孔窯更節能（在產量相等的情況下）。
同向：對于產品的工藝沒有限制，產量大。
逆向：比同向更節能（利用了一孔出料端的余熱對另一孔的進料端加熱），但是對產品工藝曲線圖要求 比較高（工藝曲線只能比較平穩）。
使用溫度：100℃—1400℃
Usage: the calcination of PTC, rare earth, ceramics, thermal ceramic components, magnetic materials, aluminum oxide, electronic ceramics and other products.
Features: double holes double circumgyration rate, 2 single kilns are more energy-saving (in the case of equal output).
Same directional: there is no limit to the process of the product with big yield. Reverse direction: it has more energy efficient than in the same direction (uses the waste heat from the discharge end of hole to heat the feed end of the other hole), but it has a relatively high require on the process graphs of product (process graphs must be relatively stable).
Operate temperature: 100 ℃~1400 ℃
主要技術參數The main technical parameters
型號 Type | 爐膛尺寸 Furnace Size （L×W×H）mm | 設備尺寸 Equipment Size （L×W×H）mm | 裝機功率 （KW） Installed Power | 控溫組數 Number of Temperature Control Group (Temperature Area） （溫區） | 常用工作溫度 Common Operating Temperature （℃） | 加熱元件 Heating Element | |
TZL-100-13 | 9000×250×180×2孔 | 12000×2000×1650 | 100 | 3 | 1300 | 硅碳棒
| |
TZL-150-13 | 12000×400×155×2孔 | 15000×1600×2000 | 150 | 8 | 1300 | 硅碳棒
| |
TZL-160-13 | 13000×400×290×2孔 | 17000×2100×1700 | 160 | 6 | 1300 | 硅碳棒
| |
TZL-200-13 | 18000×320×180×2孔 | 21000×1500×2000 | 200 | 9 | 1300 | 硅碳棒
| |
TZL-250-11 | 16000×440×250×2孔 | 20000×3800×1600 | 250 | 8 | 1100 | 電阻絲 Resistance Wire |
可根據用戶要求進行特殊設計
It can be specially designed according to users’ requirements
