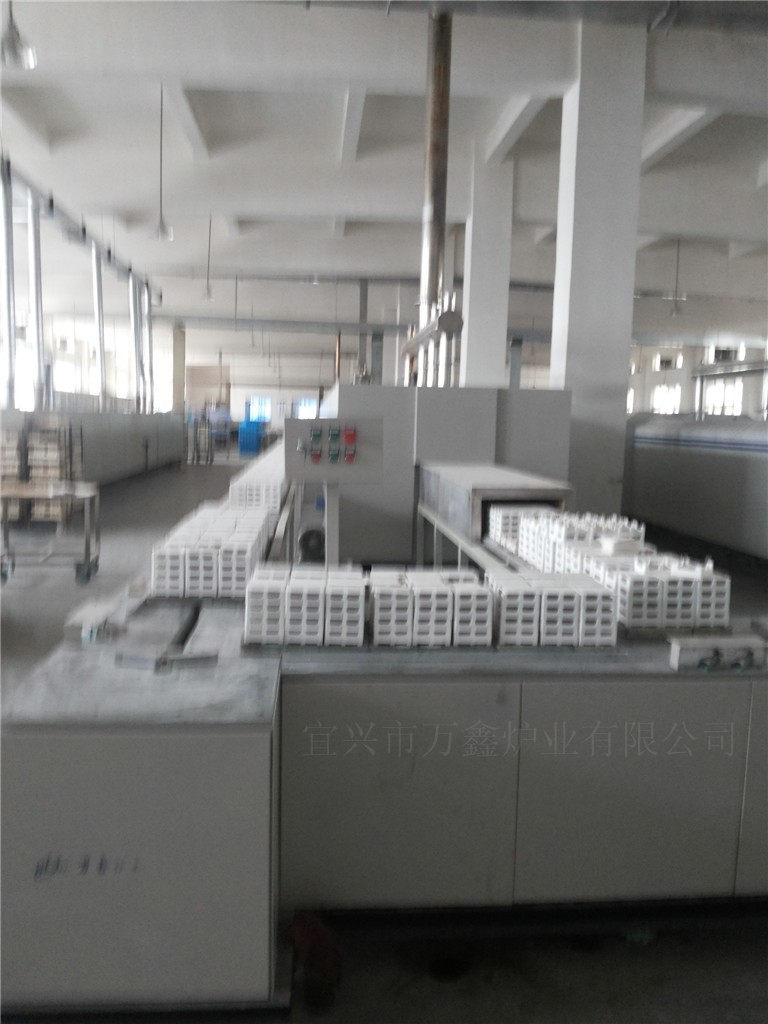

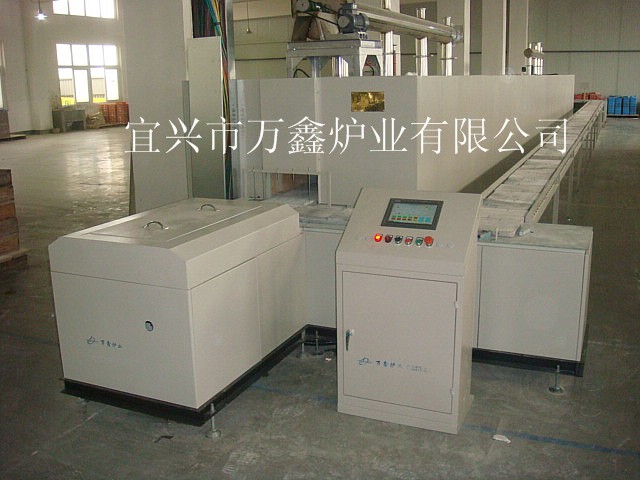

TZL automatic series single hole single push plate tunnel resistance furnace
用途：PTC、稀土、壓電陶瓷制品、磁性材料、氧化鋁、電子陶瓷等的燒成。
特點：PLC全自動控制操作簡單易懂省人工，余熱利用可減少5%的用電量。
選件：全棉爐膛、計算機控制、循環道、推進（液壓或者機械）。
使用溫度：100℃—1400℃
Usage: the firing of PTC, rare earth, piezoelectric ceramics, magnetic materials, aluminum oxide, electronic ceramics and other products.
Features: PTC automatic control, the operation is simple and easy to understand, laborsaving, the utilization of waste heat can reduce by 5 % of electricity consumption.
Option: cotton hearth, computer control, loop road, propulsion (hydraulic or mechanical).
Operate temperature: 100 ℃~1400 ℃
主要技術參數The main technical parameters
型號 Type | 爐膛尺寸 Furnace Size （L×W×H）mm | 設備尺寸 Equipment Size （L×W×H）mm | 裝機功率 Installed Power （KW） | 控溫組數
（溫區） | 常用工作溫度 Common Operating Temperature （℃） | 加熱元件 Heating Element | |
TZL-150-13 | 16000×450×200 | 22000×3500×1700 | 150 | 10 | 1350 | 硅碳棒 Silicon Carbide
| |
TZL-200-13 | 24000×480×160 | 28000×3500×1700 | 200 | 12 | 1350 | 硅碳棒 Silicon Carbide | |
TZL-150-13 | 15000×410×155 | 18000×2600×1850 | 150 | 9 | 1350 | 硅碳棒 Silicon Carbide | |
TZL-130-13 | 13500×400×180 | 16500×2600×1700 | 130 | 9 | 1350 | 硅碳棒 Silicon Carbide | |
TZL-100-13 | 12500×400×155 | 18000×2800×1700 | 100 | 8 | 1350 | 硅碳棒 Silicon Carbide |
可根據用戶要求進行特殊設計
It can be specially designed according to users’ requirements
