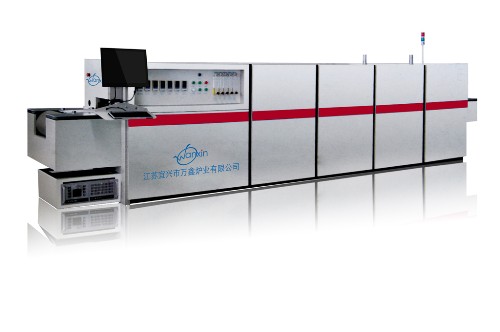

DM系列網帶燒結爐
 點擊數:3219次 添加時間:2016/8/10 [關閉] [收藏]







DM series mesh belt drying oven

用途:主要用于電子陶瓷基片的烘銀、燒銀。也可用于其它材料的燒成。

特點:DM系列隧式網帶烘干爐變頻無極調速,不銹鋼網帶傳送,全新的大包角設計理念,確保了產品平穩輸送。

使用溫度:100℃—900℃



Usage: it is mainly used for the bake silver and burning silver of electronic ceramic substrate. It can also be used for the firing of other materials.

Features: Dm series tunnel mesh belt dry furnace has frequency conversion step-less speed, stainless steel mesh belt transmission with the new design concept of the large wrap angle, so it can ensure the smooth delivery of the products.

Operate temperature: 100 ℃~900 ℃

主要技術參數The main technical parameters



型號

Type

爐膛尺寸

Furnace Size

(L*W*H)mm

最高工作溫度

The Maximum Operating Temperature

(℃)

爐溫均勻度

Furnace Temperature Uniformity

(≤±℃)

控溫組數

Number of Temperature Control Group

裝機功率

Installed Power

(KW)

DM型烘銀

DM Type Bake Silver

3500*400*50

          400

             2

     3

          18

DM型燒銀DM Type Burning Silver

5500*400*80

          800

             3

     5

          36

DM型預燒DM Type Pre-burning

20000*800*180

          850

             3

    12

         120

可根據客戶要求進行特殊設計 It can be designed according to customer specific circumstances
